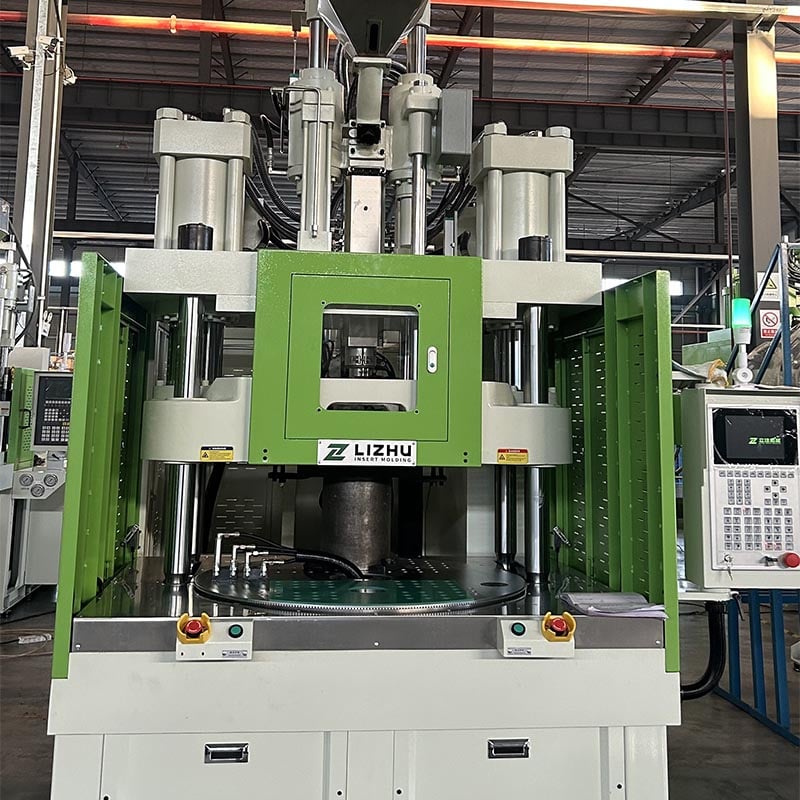

The rotary table vertical injection molding machine is widely used in various industries for the production of plastic and rubber products, including automotive components, electronic products, medical devices, household items, packaging products, and industrial parts.
Type | Unit | LZ-1600-2R | ||||
Injection unit | Screw dia. | mm | 50 | 55 | 60 | |
Injection pressure | kg/cm2 | 2150 | 1777 | 1493 | ||
Theoretical shot volume | cm3 | 392 | 475 | 565 | ||
Shot weight | g | 350 | 420 | 500 | ||
oz | 12.2 | 14.8 | 17.6 | |||
Injection rate | cm3/sec | 235 | 284 | 339 | ||
Screw stroke | mm | 200 | ||||
Screw rate | rpm | 400 | ||||
Injection speed | mm/s | 120 | ||||
Temperature section(zone) | - | 5 | ||||
Clamping unit | Clamping force | tons | 160 | |||
Opening force | tons | 20 | ||||
Rotary table | Table size | mm | 1600 | |||
Max mold size | mm | 750*600 | ||||
Min. mold thickness | mm | 350 | ||||
Opening stroke | mm | 350 | ||||
Opening daylight | mm | 700 | ||||
Electric unit | Ejector force | tons | 6 | |||
Ejector stroke | mm | 100 | ||||
Max. pressure | kg/cm2 | 140 | ||||
Oil tank volume | liters | 560 | ||||
Cooling water volume | liters/hr | 80 | ||||
System Motor | kw | 37 | ||||
Heater | kw | 16 | ||||
Total wattage | kw | 53 | ||||
Others | Machine weight | tons | 11 | |||
Machine size | m | L3.4*W2.4*H4.9 |
The rotary table vertical injection molding machine offers the advantage of simultaneous operation at multiple stations, ensuring high stability, precision, and versatility in the production of various plastic and rubber products.
