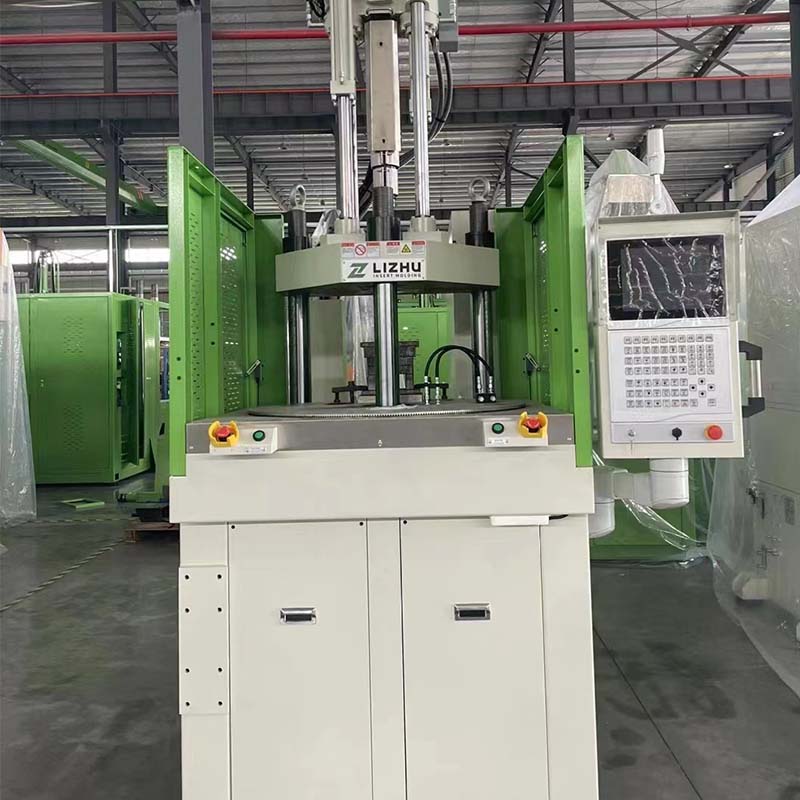

Rotary table vertical injection molding machine 35Tons, China Rotary table vertical injection molding machine 35Tons Manufacturers, Suppliers, Factory

Place of Origin:	China
Brand Name:	LIZHU
Model Number:	LZ-350-2R
Certification:	CE;CSA
Minimum Order Quantity:	1set
Price:	Negotiation
Packaging Details:	Wooden box
Delivery Time:	7-10 days
Payment Terms:	T/T, L/C
Supply Ability:	12 pcs/month

Applications

The rotary table vertical injection molding machine is widely used in various industries for the production of plastic and rubber products, including automotive components, electronic products, medical devices, household items, packaging products, and industrial parts.

Specifications

Type			Unit	LZ-350-2R
Injection unit	Screw dia.		mm	25	28	30
	Injection pressure		kg/cm2	2150	1715	1495
	Theoretical shot volume		cm3	49	62	70
	Shot weight		g	44	55	62
			oz	1.5	1.9	2.2
	Injection rate		cm3/sec	63	80	91
	Screw stroke		mm	100
	Screw rate		rpm	0-350
	Injection speed		mm/s	130
	Temperature section(zone)		-	5
Clamping unit	Clamping force		tons	35
	Opening force		tons	3.8
	Rotary table	Table size	mm	700
		Max mold size	mm	400*220
	Min. mold thickness		mm	140
	Opening stroke		mm	180
	Opening daylight		mm	320
Electric unit	Ejector force		tons	1.5
	Ejector stroke		mm	100
	Max. pressure		kg/cm2	140
	Oil tank volume		liters	160
	Cooling water volume		liters/hr	50
	System Motor		kw	5.5
	Heater		kw	4.5
	Total wattage		kw	10
Others	Machine weight		tons	1.6
	Machine size		m	L2.15W1.4H2.8

Competitive Advantage

The rotary table vertical injection molding machine offers the advantage of simultaneous operation at multiple stations, ensuring high stability, precision, and versatility in the production of various plastic and rubber products.
