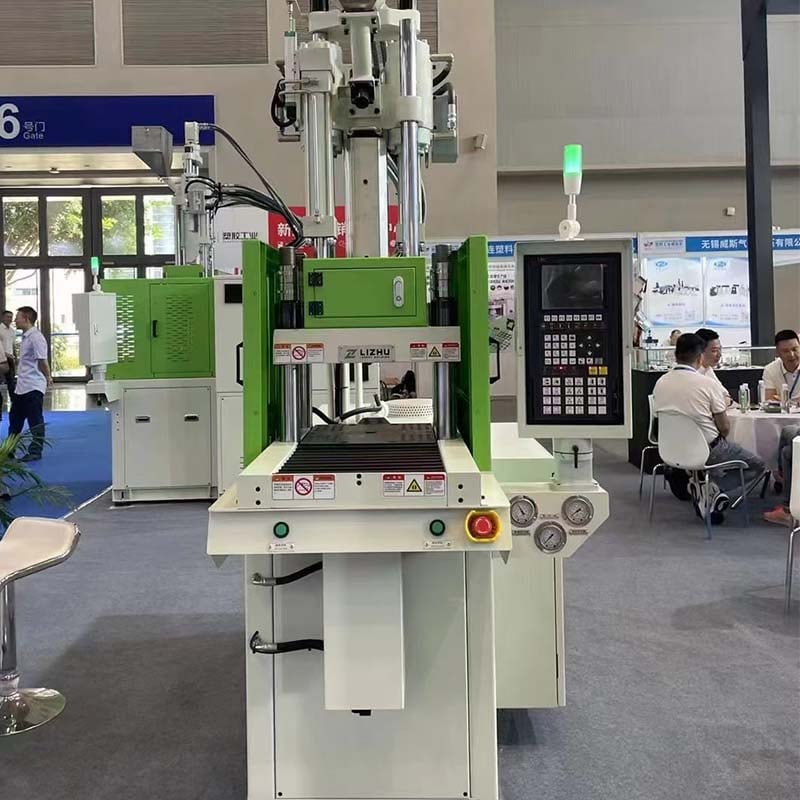

The Vertical Injection Molding Machine with Sliding Table has wide-ranging applications in industries such as electronics, automotive components, medical devices, household products, and packaging. Its advantages include high-precision injection molding, flexible mold changing capability, and space-saving design, making it an essential production equipment in numerous industries.
Type | Unit | LZ-1000D | |||
Injection unit | Screw dia. | mm | 40 | 45 | 50 |
Injection pressure | kg/cm2 | 2200 | 1738 | 1408 | |
Theoretical shot volume | cm3 | 200 | 254 | 314 | |
Shot weight | g | 176 | 224 | 277 | |
oz | 6.2 | 7.9 | 9.8 | ||
Injection rate | cm3/sec | 150 | 190 | 235 | |
Screw stroke | mm | 160 | |||
Screw rate | rpm | 0-350 | |||
Injection speed | mm/s | 120 | |||
Temperature section(zone) | - | 5 | |||
Clamping unit | Clamping force | tons | 100 | ||
Opening force | tons | 17 | |||
Single sliding table size | mm | 585*550 | |||
Min. mold thickness | mm | 250 | |||
Opening stroke | mm | 250 | |||
Opening daylight | mm | 500 | |||
Electric unit | Ejector force | tons | 3 | ||
Ejector stroke | mm | 100 | |||
Max. pressure | kg/cm2 | 140 | |||
Oil tank volume | liters | 330 | |||
Cooling water volume | liters/hr | 80 | |||
System Motor | kw | 22 | |||
Heater | kw | 11 | |||
Total wattage | kw | 33 | |||
Others | Machine weight | tons | 4 | ||
Machine size | m | L2.5*W1.4*H3.9 |
The Vertical Injection Molding Machine with Sliding Table excels in high-precision injection molding, flexible mold changing capability, space-saving design, and efficient production capacity. It has become a vital injection molding equipment in many industries.
