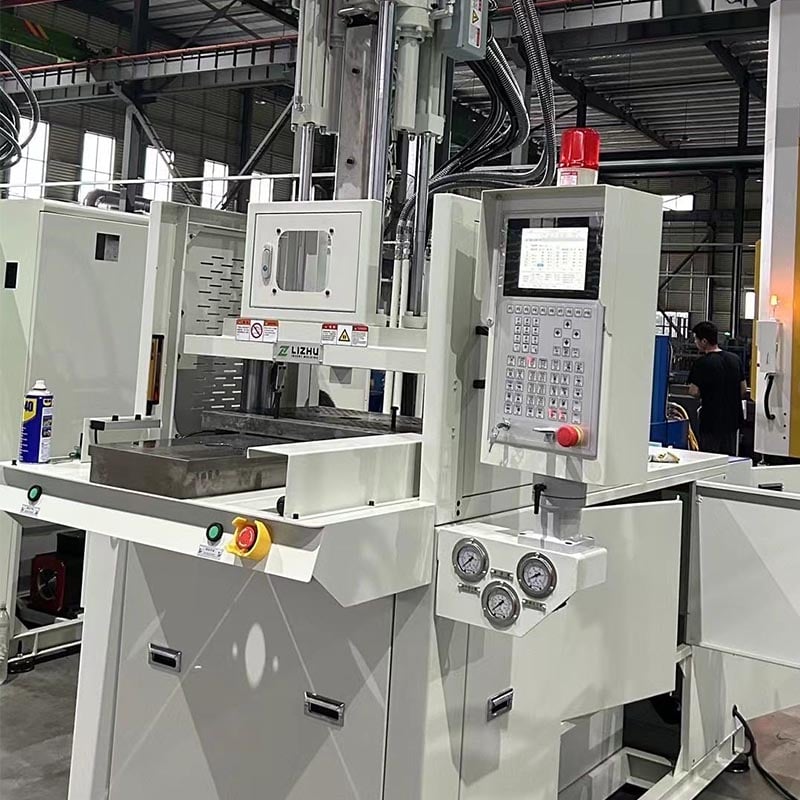

The Vertical Injection Molding Machine with Sliding Table has wide-ranging applications in industries such as electronics, automotive components, medical devices, household products, and packaging. Its advantages include high-precision injection molding, flexible mold changing capability, and space-saving design, making it an essential production equipment in numerous industries.
Type | Unit | LZ-450D | |||
Injection unit | Screw dia. | mm | 25 | 30 | 35 |
Injection pressure | kg/cm2 | 2150 | 1740 | 1280 | |
Theoretical shot volume | cm3 | 60 | 85 | 115 | |
Shot weight | g | 53 | 76 | 101 | |
oz | 1.9 | 2.7 | 3.6 | ||
Injection rate | cm3/sec | 63 | 91 | 125 | |
Screw stroke | mm | 120 | |||
Screw rate | rpm | 0-350 | |||
Injection speed | mm/s | 130 | |||
Temperature section(zone) | - | 5 | |||
Clamping unit | Clamping force | tons | 45 | ||
Opening force | tons | 4.3 | |||
Single sliding table size | mm | 386*420 | |||
Min. mold thickness | mm | 160 | |||
Opening stroke | mm | 200 | |||
Opening daylight | mm | 360 | |||
Electric unit | Ejector force | tons | 1.5 | ||
Ejector stroke | mm | 100 | |||
Max. pressure | kg/cm2 | 140 | |||
Oil tank volume | liters | 160 | |||
Cooling water volume | liters/hr | 50 | |||
System Motor | kw | 5.5 | |||
Heater | kw | 5.8 | |||
Total wattage | kw | 11.3 | |||
Others | Machine weight | tons | 1.8 | ||
Machine size | m | L2.1*W1.1*H3.1 |
The Vertical Injection Molding Machine with Sliding Table excels in high-precision injection molding, flexible mold changing capability, space-saving design, and efficient production capacity. It has become a vital injection molding equipment in many industries.
